Steel Structure Engineering: Complete Workflow from Design to Construction

Steel structure engineering is the backbone of every industrial building — from a 500m² workshop in Thailand to a 10,000m² logistics center in Saudi Arabia. A well-engineered steel structure means lower material cost, faster erection, and decades of trouble-free service. A poorly engineered one means change orders, delays, and safety risks.

This guide walks you through the complete steel structure engineering workflow — six phases from first design sketch to final handover — so you know exactly what happens at each stage and how to work effectively with your engineering team.

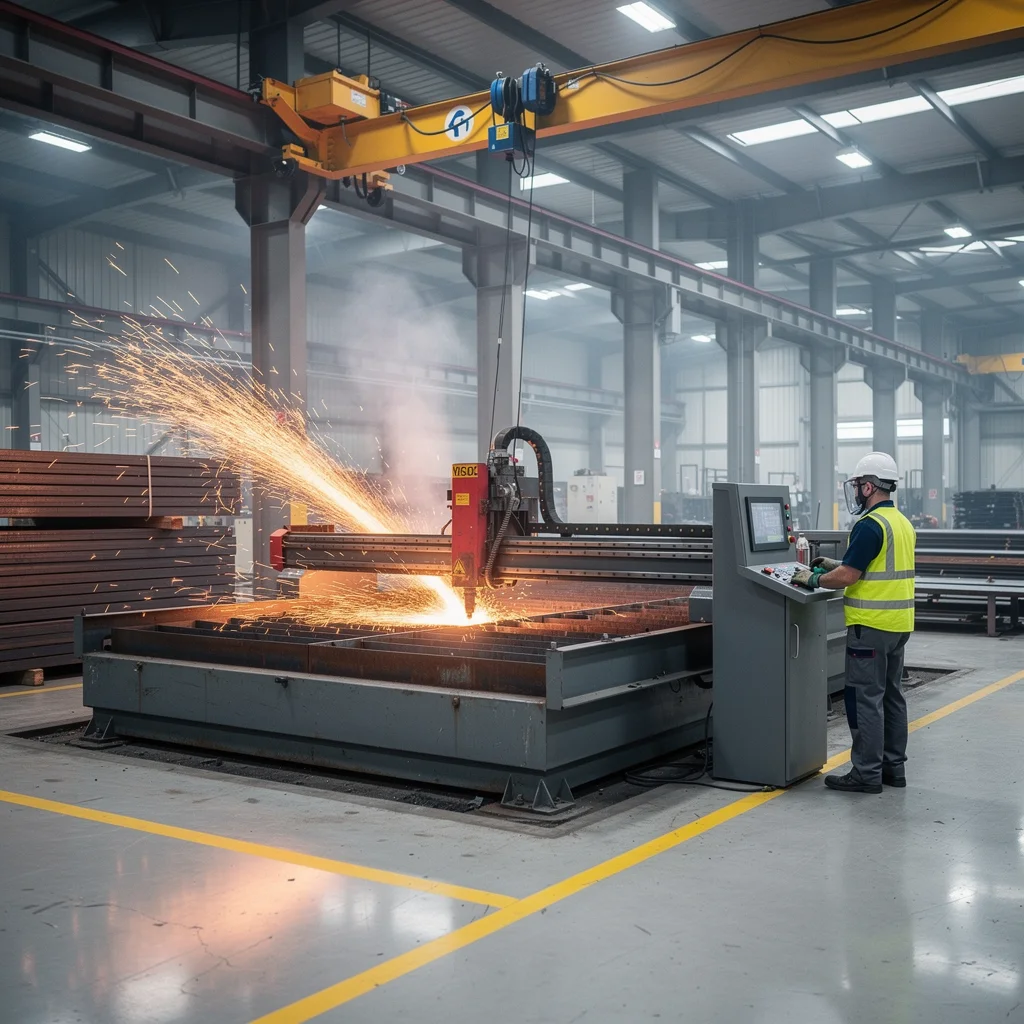

Steel Structure Engineering Workflow Overview

Phase 1: Design & Structural Analysis

Structural design is where engineering begins. The goal is to translate architectural requirements into a safe, efficient, and code-compliant steel frame.

Load Calculation

Every steel structure must resist four main load types:

Load Type	Description	Typical Value (Warehouse)
Dead Load (DL)	Self-weight of steel + cladding + fixtures	0.25–0.50 kN/m²
Live Load (LL)	Occupancy, movable equipment, maintenance	0.50–1.50 kN/m²
Wind Load (WL)	Wind pressure on walls and roof	Varies by region (see wind load guide)
Seismic Load (EL)	Earthquake forces	Varies by seismic zone

For a detailed walkthrough of wind load calculation across different codes, see our Wind Load Calculation Guide.

Structural System Selection

Your building type determines the structural system:

Portal frame: Most common for warehouses and factories, clear span 18–60m range. Cost-effective and fast to fabricate.
Space frame / truss: Large-span structures (60m+), ideal for aircraft hangars, exhibition halls, and sports facilities.
Multi-story frame: Offices, hotels, mixed-use buildings. Uses beam-column frames with composite floor decks.

For beginners, start with our Steel Structure Design Guide for Beginners.

Engineering Software

Professional steel structure engineering relies on specialized software:

Software	Use Case	Region Popularity
Tekla Structures	3D modeling, shop drawings, BOM generation	Global
SAP2000	Structural analysis, dynamic/seismic analysis	Global
STAAD.Pro	Frame analysis, design optimization	India, Middle East, SE Asia
PKPM / 3D3S	Chinese standard design (GB code)	China domestic
Midas Gen	Bridge and complex structure analysis	Korea, SE Asia

Design Code Compliance

Different countries use different design codes. Here is how to ensure compliance:

Region	Steel Design Code	Load Code	Seismic Code
United States	AISC 360	ASCE 7	ASCE 7 Chapter 11–23
Europe	Eurocode 3 (EN 1993)	Eurocode 1 (EN 1991)	Eurocode 8 (EN 1998)
China	GB 50017	GB 50009	GB 50011
Australia/NZ	AS 4100 / NZS 3404	AS/NZS 1170	AS 1170.4
International	AISC or Eurocode (most accepted for export projects)

More details at our Global Building Codes Comparison.

Key principle: tell your engineering team which code your project requires before design starts. Switching codes mid-project means re-running the entire analysis.

Phase 2: Detailing & Connection Design

Once the structural analysis passes, the engineering team moves to detailing — creating the fabrication drawings that the factory will use to cut, drill, and weld every single steel member.

Shop Drawings vs Design Drawings

Design drawings: Show overall dimensions, grid lines, member sizes, and general arrangement. For client approval.
Shop drawings: Show every bolt hole, weld specification, plate dimension, and assembly sequence. For factory production.

Shop drawings are the most critical deliverable in steel structure engineering. A single missing dimension can halt fabrication for days.

Connection Engineering

The choice between bolted and welded connections affects cost, erection speed, and maintenance:

Connection Type	Pros	Cons	Best For
Bolted (High-Strength)	Fast erection, no site welding, easy QC	Slightly higher material cost (bolts + plates)	Export projects, remote sites
Welded (Shop)	Lower material cost, rigid joints	Requires skilled welders, slower fabrication	Rigid frame corners, complex geometries
Hybrid (shop weld + site bolt)	Best of both worlds	Needs careful coordination	Most Laotie export projects

Read our full comparison: Bolted vs Welded Connections.

Bolt Grade Reference

Grade	Material	Tensile Strength (MPa)	Application
8.8	Medium carbon steel, quenched & tempered	800	Standard structural connections
10.9	Alloy steel, quenched & tempered	1,000	High-load connections, crane beams
12.9	Alloy steel	1,200	Critical connections, heavy cranes

Phase 3: Material Procurement & BOM

After detailing, the engineering team generates a Bill of Materials (BOM) — a complete list of every steel section, plate, bolt, and accessory needed for fabrication.

Steel Grade Selection

Standard	Common Grades	Yield Strength (MPa)	Typical Use
ASTM (US)	A36 / A572 Gr.50	250 / 345	Export to Americas, Middle East
EN (Europe)	S235JR / S275JR / S355J2	235 / 275 / 355	Export to Europe, Africa
GB (China)	Q235B / Q355B	235 / 355	Domestic, many export projects
JIS (Japan)	SS400 / SM490	245 / 325	Export to SE Asia, Japan

Typical BOM for a 2,000m² Warehouse

Component	Section	Approx. Weight
Main columns	H400×250×8×12	8–12 tons
Roof beams	H(500–700)×220×8×10	10–15 tons
Crane beams	H500×300×10×16	5–8 tons
C/Z purlins	C200×70×20×2.5	6–9 tons
Tie rods + bracing	Ø18–Ø25 round steel	2–3 tons
Total (portal frame)	31–47 tons

What a Real Quotation Looks Like

Below is a real steel structure quotation from Laotie Steel — exactly what you will receive after engineering is complete. Every component is itemized with quantity, specification, unit price, and total.

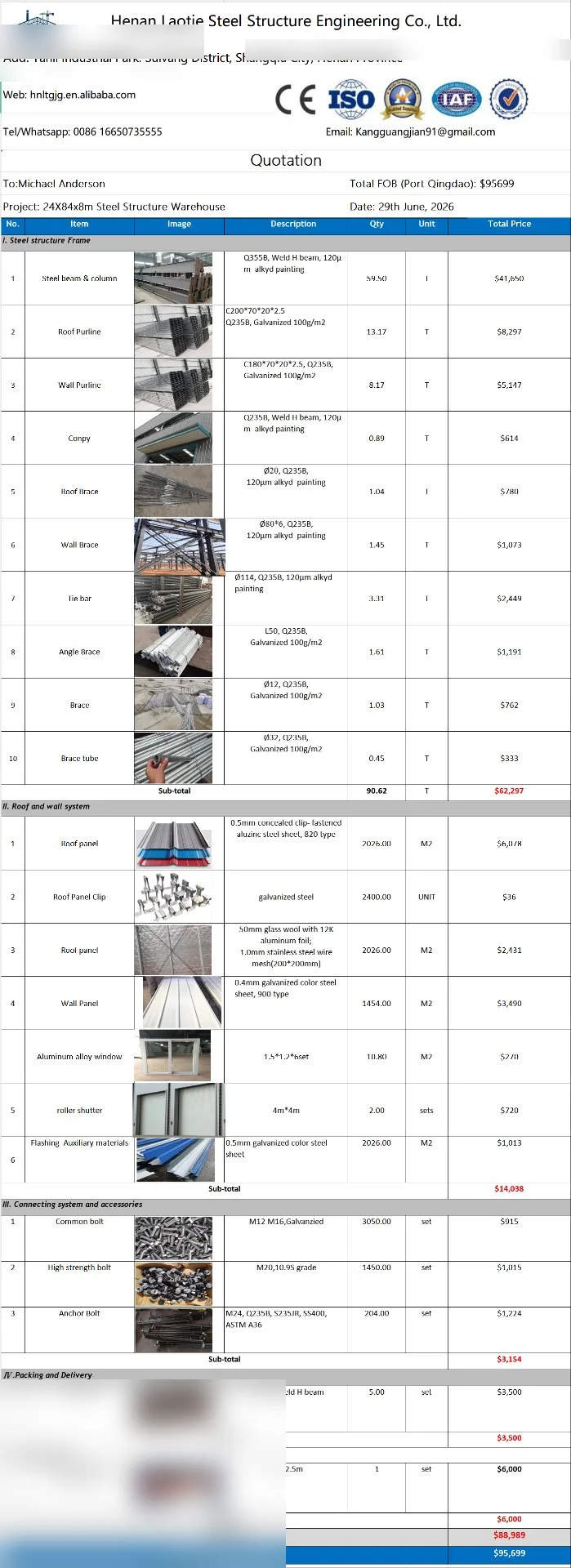

Sample steel structure quotation with BOM breakdown

A professional quotation gives you full cost transparency before you commit. No hidden fees, no surprise add-ons.

Phase 4: Fabrication & Quality Control

The approved shop drawings go to the factory floor. This is where engineering precision turns into physical steel.

Fabrication Process

Material inspection: Incoming steel plates and sections checked against mill certificates.
CNC cutting: Plasma or flame cutting to exact dimensions from shop drawings. Tolerance: ±1.5mm.
Drilling: Bolt holes drilled by CNC beam drill lines. Tolerance: ±0.5mm on hole position.
Welding: Submerged arc welding (SAW) for main members, CO₂ gas-shielded welding for secondary.
Surface preparation: Shot blasting to Sa 2.5 (ISO 8501-1) — removes mill scale and rust.
Coating: Primer applied immediately after blasting. Intermediate and topcoat per specification.

For an in-depth look at the factory floor, see our CNC & Welding Guide.

Corrosion Protection by Environment

ISO Category	Environment	Minimum Coating	Expected Life
C1–C2	Indoor, low pollution	80µm primer only	15–25 years
C3	Urban, moderate humidity	120µm (primer + topcoat)	15–20 years
C4	Industrial, coastal (1km+)	200µm (primer + intermediate + topcoat)	10–15 years
C5	Marine, high pollution	240µm+ or hot-dip galvanized	10–15 years
C5-M	Offshore, aggressive marine	Hot-dip galvanized (≥85µm)	15–25 years

Full guide: Steel Structure Corrosion Protection C1 to C5.

Pre-Shipment Inspection

Before packing, the QC team conducts a pre-assembly inspection — assembling key frame connections in the factory to verify that all bolt holes align and all members fit correctly. This catches fabrication errors before the steel leaves China.

Our complete QC checklist: Factory Inspection QC Checklist 2026.

Phase 5: Packing, Shipping & Logistics

Shipping steel structures internationally requires careful planning. Steel is heavy, oddly shaped, and vulnerable to corrosion during transit.

Packing Standards

Primary steel (columns, beams): Bundled with steel straps, separated by timber dunnage, wrapped in waterproof tarp.
Secondary steel (purlins, girts): Bundled by type and length, wrapped.
Cladding (roof/wall sheets): Stacked on pallets with protective interleaving, wrapped in waterproof film.
Fasteners & accessories: Packed in plywood cases, labeled by category.
Crane components: Individually wrapped and crated.

Container Loading

Container Type	Internal Dim (L×W×H)	Max Payload	Best For
40′ HC	12.03 × 2.35 × 2.69m	~28 tons	Standard projects up to ~2,500m²
40′ OT (Open Top)	12.03 × 2.35 × 2.69m	~28 tons	Tall columns that exceed HC door height
Break-bulk	N/A (ship hold)	100+ tons	Oversized trusses, complete large projects

Full shipping guide: Steel Structure Shipping & Logistics.

Phase 6: Erection & On-Site Installation

The final engineering deliverable is the erection manual — a sequenced document showing the installation team the exact order of assembly, bolt tightening specifications, and safety requirements.

Erection Sequence

Foundation check: Verify anchor bolt positions, elevations, and concrete strength before steel arrives.
Column erection: Lift columns onto anchor bolts, plumb and align, tighten nuts.
Beam installation: Connect roof beams to columns, starting from braced bays.
Secondary framing: Install purlins, girts, tie rods, and bracing.
Cladding: Install roof sheets, wall sheets, flashings, and trims.
Accessories: Install doors, windows, ventilators, gutters, and downspouts.
Final inspection: Bolt torque check, alignment verification, coating touch-up.

Detailed step-by-step guide: Steel Structure Installation Guide.

Foundation Coordination

Steel engineering and foundation engineering must be tightly coordinated. The anchor bolt layout comes from the steel design team and must match the foundation exactly. See our Steel Structure Foundation Guide.

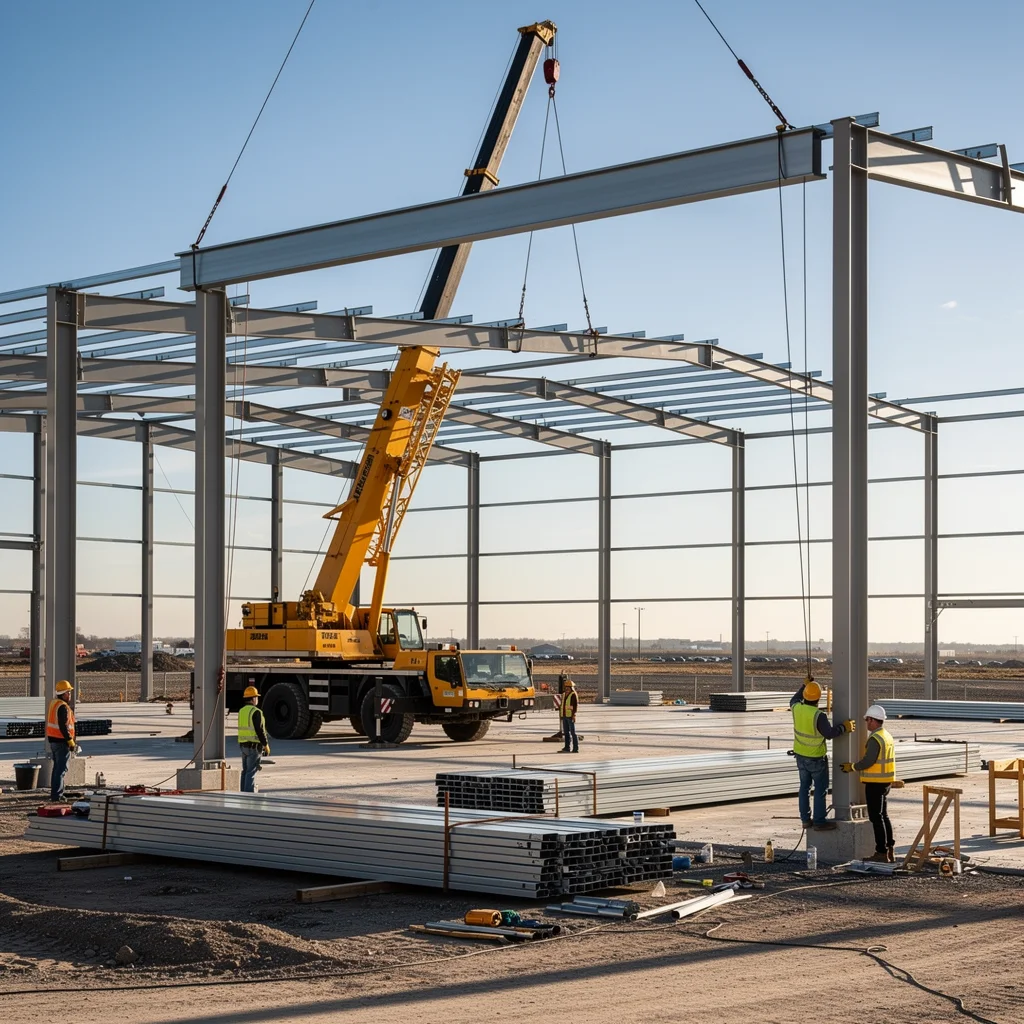

Steel structure erection on-site with mobile crane

Working with Chinese Engineering Teams

Most international buyers work with Chinese steel structure manufacturers for engineering + fabrication. Here is what to expect:

The Engineering Review Process

You provide: Architectural drawings, local code requirements, site conditions (wind zone, seismic zone, soil report).
Engineering team delivers: Structural calculation report + design drawings (7–14 days).
You review: Check member sizes, connection types, and design assumptions.
Engineering team revises: Incorporate your feedback (3–5 days).
Approved design → shop drawings: 10–14 days for full fabrication drawings.

Total engineering time: 3–5 weeks for a typical warehouse project.

Communication Best Practices

Specify your design code in writing before engineering starts.
Request both calculation report and material takeoff — not just drawings.
Ask for a pre-assembly inspection at the factory before shipment.
Confirm packing method and container plan before fabrication finishes.

For more on choosing the right manufacturer, see our 10-Point Manufacturer Checklist.

FAQ

How long does steel structure engineering take?

For a standard warehouse or factory (2,000–5,000m²), engineering takes 3–5 weeks from receiving complete project information to delivering approved shop drawings. Complex projects with cranes, mezzanines, or unusual geometries may take 6–8 weeks.

Can I use my country's design code?

Yes. Chinese engineering teams routinely work with AISC, Eurocode, AS/NZS, and BS standards. Specify your code requirement during the initial inquiry. All calculation reports are prepared in English for international projects.

What if the design changes mid-project?

Design changes after shop drawings are approved are called variations. Minor changes (moving a door, adding a window) are usually free or low-cost. Major changes (increasing span, adding a crane, changing steel grade) require re-analysis and will add time and cost. Try to finalize all requirements before engineering starts.

Do I need a local engineer to review?

In many countries, yes — local authorities require a locally licensed engineer to stamp the structural calculations for permit approval. However, Chinese engineering teams prepare the calculations in the correct format, making the local review straightforward.

What is included in the engineering fee?

Standard engineering packages include: structural calculation report, design drawings (plan, elevation, section), shop drawings (every member detailed), BOM with quantities and weights, anchor bolt layout, and erection manual. Some manufacturers include engineering in the total package price; others charge separately.
