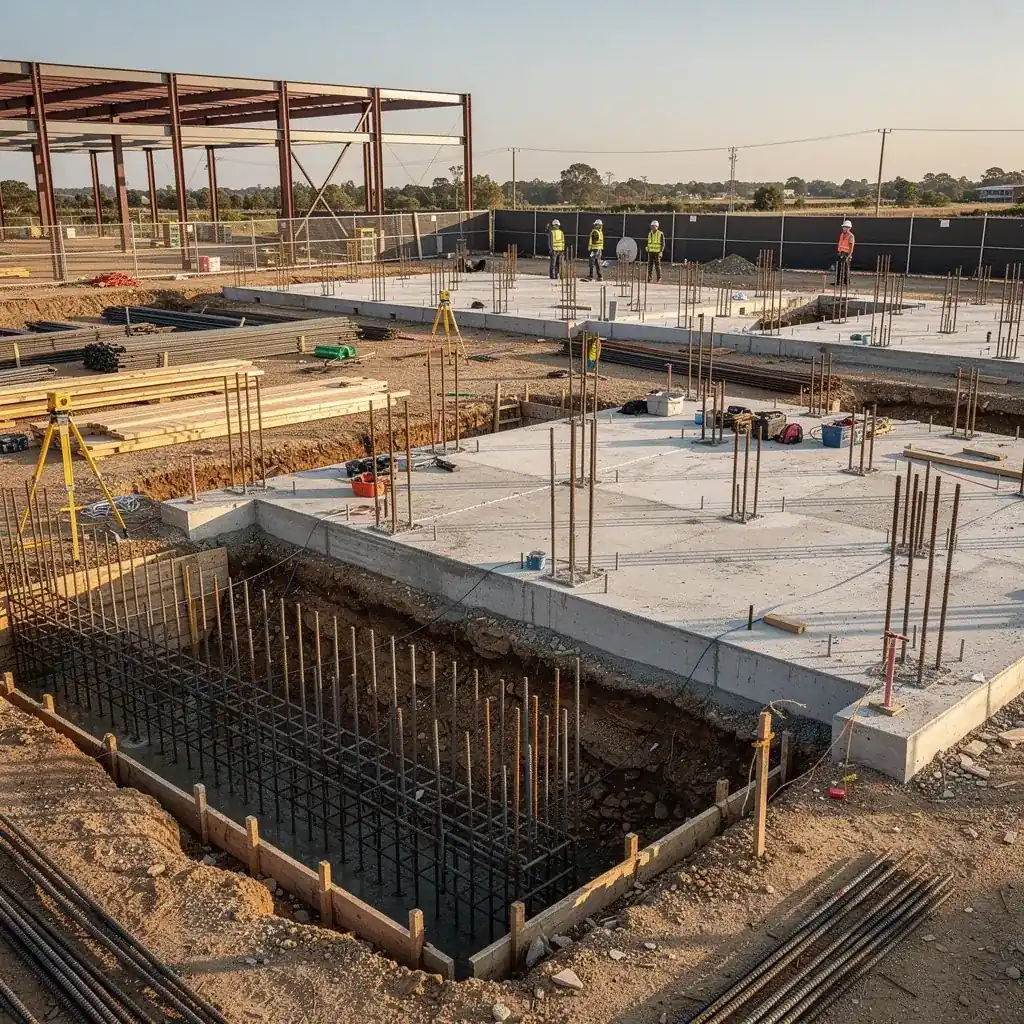

Steel Structure Foundation Guide: Types, Requirements & Cost

The foundation is the most critical part of any steel structure building. A well-designed foundation ensures your building stays level, resists wind loads, and lasts its full design life of 50+ years.

Foundation Types for Steel Structures

Pad Footing (Individual Column Footing)

Most common type for steel buildings with good soil conditions (bearing capacity ≥150 kN/m²).

Building Type	Footing Size	Reinforcement	Cost (each)
Light warehouse (no crane)	1.2×1.2×0.3m	12mm @ 200mm BBS	$40–60
Medium warehouse (10T crane)	1.5×1.8×0.4m	16mm @ 150mm BBS	$60–80
Large factory (50T crane)	2.0×2.5×0.6m	20mm @ 150mm BBS	$100–150

Best for: Good soil, low to moderate loads, economical for most projects.

Strip Footing (Continuous Wall Footing)

A continuous concrete beam running along the column line. Used when columns are closely spaced (<6m) or soil is variable.

Depth: 400–800mm
Width: 600–1200mm
Reinforcement: Top + bottom continuous bars at 12–16mm diameter
Cost: $60–120 per linear meter

Best for: Long wall lines, closely spaced columns, moderate soil conditions.

Raft Foundation (Mat Foundation)

A single thick concrete slab under the entire building footprint. Distributes building load over a large area.

Soil Bearing Capacity	Raft Thickness	Cost/m²
>100 kN/m²	300–400mm	$30–40
50–100 kN/m²	400–600mm	$40–50
<50 kN/m²	600–800mm	$50–60

Best for: Very poor soil (<80 kN/m²), heavy buildings with high column loads, buildings on fill material.

Pile Foundation

Deep foundation elements that transfer loads through weak soil to competent bearing strata.

Pile Type	Capacity	Typical Length	Cost per Linear Meter
Driven precast concrete pile	300–800 kN	10–25m	$20–35
Bored cast-in-situ pile	500–2000 kN	15–40m	$30–45
Steel H-pile	400–1000 kN	10–30m	$25–40
Screw pile (helical)	100–500 kN	5–15m	$35–55

Best for: Soft soil, high water table, heavy crane loads, sites with deep compressible soil layers.

Anchor Bolt Design

Anchor bolts connect the steel column base plate to the concrete foundation. Proper anchor bolt design is essential for structural safety.

Column Load	Bolt Diameter	Bolt Grade	Embedment Depth	Base Plate Size
Light (warehouse)	M20–M24	4.6 / 5.6	400–500mm	300×300×12mm
Medium (factory)	M24–M30	5.6 / 8.8	500–600mm	400×400×16mm
Heavy (industrial)	M30–M42	8.8	600–800mm	500×500×20mm

Critical anchor bolt details:

Use double nuts and washers for all connections
Extend bolts 75–100mm above finished floor for leveling adjustment
Provide a 50mm grout gap between base plate and foundation
Use bolt template (jig) to ensure ±3mm positional accuracy
Hot-dip galvanize bolts in corrosive environments

Soil Testing Requirements

Before foundation design, conduct these soil tests:

Test	Purpose	Method
Bearing capacity test	Determine allowable soil pressure	Plate load test (ASTM D1194)
Soil classification	Identify soil type (sand, clay, silt)	Sieve analysis + Atterberg limits
Groundwater level	Determine foundation depth & waterproofing	Observation wells
Compaction test	Verify fill compaction quality	Standard Proctor (ASTM D698)

Minimum recommended soil investigation: 2 boreholes per 1,000 m² building area, minimum 10m depth.

Foundation Design Process

Soil investigation report — Obtain bearing capacity and soil classification
Load calculation — Sum of dead loads + live loads + wind loads + crane loads
Select foundation type — Based on soil, loads, and building configuration
Design reinforcement — Calculate steel area required per ACI 318 or EN 1992
Check settlements — Total and differential settlement must be within limits (typically <25mm total)
Waterproofing design — Membrane or admixture for below-grade foundations
Anchor bolt layout — Position bolts to match column base plate holes

Foundation Cost (per m² of Building)

Building Type	Cost/m²	% of Total Building Cost
Small warehouse (no crane)	$8–15	8–12%
Medium warehouse (10T crane)	$12–20	10–15%
Large factory (50T crane)	$20–35	12–18%
Cold storage (insulated slab)	$18–30	12–16%
Hangar (large-span, heavy)	$25–45	15–20%

Common Foundation Mistakes

Over-designing foundations — Applying concrete building rules to steel structures (steel is lighter, so foundations can be smaller)
Under-designing for wind uplift — Steel buildings are light; wind uplift can overturn inadequately anchored frames
Poor anchor bolt placement — The most common field problem. Use a steel template jig to ensure accuracy
Ignoring frost depth — Foundations must extend below frost line (typically 600–1200mm in cold climates)
Inadequate drainage — Water accumulation around foundations causes settlement and corrosion
No consideration of seismic loads — In seismic zones, foundations must resist horizontal accelerations

Construction Timeline

Phase	Duration	Notes
Soil investigation	1 week	Typical for 2–3 boreholes
Foundation design	1–2 weeks	Engineering calculations + drawings
Excavation	1–2 weeks	Depends on soil type and depth
Reinforcement & formwork	2–3 weeks	Most labor-intensive phase
Concrete pouring & curing	1–2 weeks	70% strength reached at 7–10 days
Total	4–6 weeks	Before steel erection can begin

Steel erection typically starts 7–10 days after concrete pouring (when concrete reaches 70% of design strength).
