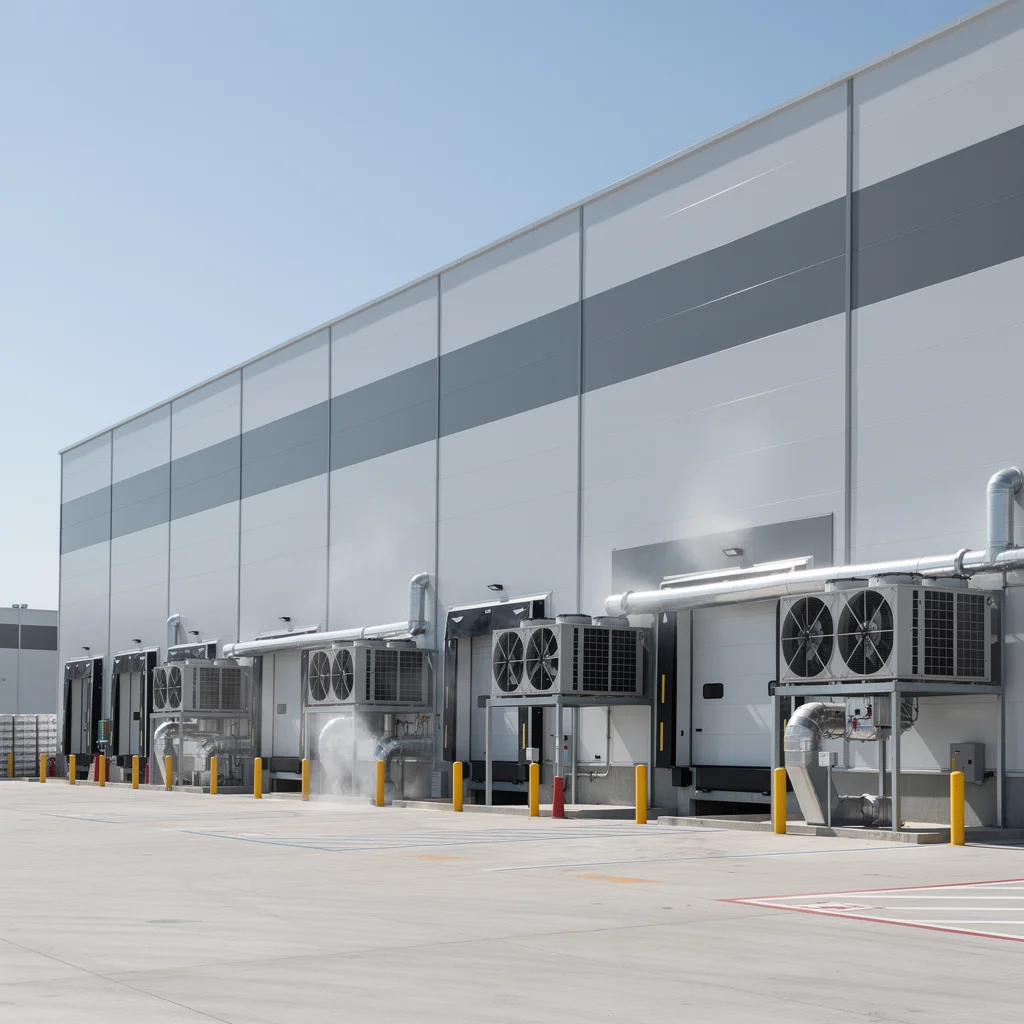

Steel Structure for Cold Storage Warehouse: Design, Insulation & Cost Guide
Complete guide to steel structure cold storage warehouses. Learn about insulated panel systems, vapor barriers, floor design, refrigeration integration, and cost per square meter.
Cold storage warehouses are among the most technically demanding steel structure applications. They must maintain precise temperatures (-25°C to +5°C), control humidity, prevent condensation, and operate reliably for decades.
This guide covers the specialized design considerations, insulation systems, and cost factors for steel structure cold storage facilities.
Why Steel for Cold Storage?
Steel is the preferred structural system for cold storage for several reasons:
| Advantage | Why It Matters for Cold Storage |
|---|---|
| Large clear spans | Maximizes pallet racking layout — fewer columns = more storage density |
| Thermal break design | Steel can be detailed to minimize thermal bridging |
| Speed of construction | Cold storage facilities lose revenue during construction — faster is better |
| Future expansion | Cold storage demand often grows — steel extensions are straightforward |
| Integration with insulated panels | Steel frames support heavy insulated sandwich panels |
Key Design Considerations
1. Insulated Panel System
The most critical element of a cold storage building is the thermal envelope. Modern cold storage steel buildings use PIR/PU insulated sandwich panels:
| Panel Type | Core Material | R-Value (per 100mm) | Best For |
|---|---|---|---|
| PIR (polyisocyanurate) | Rigid foam | 6.0-7.0 | Freezers (-25°C to -5°C) |
| PU (polyurethane) | Rigid foam | 5.5-6.5 | Coolers (0°C to +10°C) |
| EPS (expanded polystyrene) | Beaded foam | 3.5-4.0 | Dry storage (+10°C to +20°C) |
| Rock wool | Mineral fiber | 3.0-3.5 | Fire-rated separations |
| Temperature Range | Panel Thickness |
|---|---|
| -25°C to -18°C (deep freeze) | 150-200mm |
| -5°C to 0°C (freezer) | 120-150mm |
| 0°C to +5°C (chiller) | 100-120mm |
| +5°C to +12°C (cool room) | 80-100mm |
2. Vapor Barrier
Condensation is the enemy of cold storage. A proper vapor barrier must be installed on the warm side of the insulation to prevent moisture migration:
- Roof: Self-adhering membrane over the steel roof deck, below the insulation
- Walls: Vapor-retardant facing on the warm side of insulated panels
- Floor: Heavy-duty vapor barrier (polyethylene sheet, minimum 0.3mm) below the insulated slab
3. Floor Design
The floor is the most problematic area in cold storage:
| Element | Requirement |
|---|---|
| Insulation | XPS (extruded polystyrene), 100-200mm thick |
| Vapor barrier | Below insulation — continuous with wall vapor barrier |
| Heating system | Floor heating (electric or glycol) below slab to prevent frost heave |
| Slab thickness | 150-200mm reinforced concrete with fiber mesh |
| Joint sealant | Flexible, low-temperature rated sealants at all joints |
4. Structural Steel Detailing
Cold storage requires special steel detailing to avoid thermal bridges:
- Column bases: Thermal break pads between column base plates and foundations
- Roof penetrations: Insulated curbs for all roof penetrations (pipes, ducts, lights)
- Door openings: Heated door frames with heavy-duty insulated rapid roll doors
- Interior structure: Galvanized or epoxy-coated steel to resist condensation corrosion
Refrigeration System Integration
A steel structure for cold storage must accommodate the refrigeration system:
| Component | Design Consideration |
|---|---|
| Evaporator units | Suspended from roof structure — requires reinforced steel supports |
| Condenser units | External — typically on a steel platform outside the building |
| Refrigerant piping | Pre-insulated pipes running along designated pipe supports |
| Dock levelers | Insulated dock shelters for loading bays |
| Air curtains | Installed above all personnel and truck doors |
Cost per Square Meter
Cold storage steel buildings cost significantly more than standard warehouses due to insulation and refrigeration:
| Component | Standard Warehouse | Cold Storage Warehouse |
|---|---|---|
| Steel structure & cladding | $50-80/m² | $60-90/m² |
| Insulated panels | — | $40-80/m² |
| Floor system (heated) | $15-25/m² | $40-60/m² |
| Refrigeration system | — | $80-200/m² |
| Total building cost | $80-120/m² | $220-430/m² |
| MEP & controls | $20-40/m² | $40-80/m² |
| Total project cost | $100-160/m² | $260-510/m² |
Applications
Steel structure cold storage buildings are used for:
- Food processing — meat, dairy, seafood, prepared meals
- Cold chain logistics — distribution centers for frozen and chilled goods
- Pharmaceutical storage — temperature-controlled medicine and vaccine storage
- Agricultural cold storage — fruit, vegetable, and flower cold rooms
- Beverage warehouses — beer, wine, soft drink storage
Get a Quote for Your Cold Storage Steel Building
Laotie Steel Structure designs and fabricates steel buildings for cold storage and logistics center applications. We work with experienced insulated panel suppliers and refrigeration engineers to deliver complete cold storage solutions.
Contact us with your project requirements, and we will provide a detailed quotation within 24 hours.
