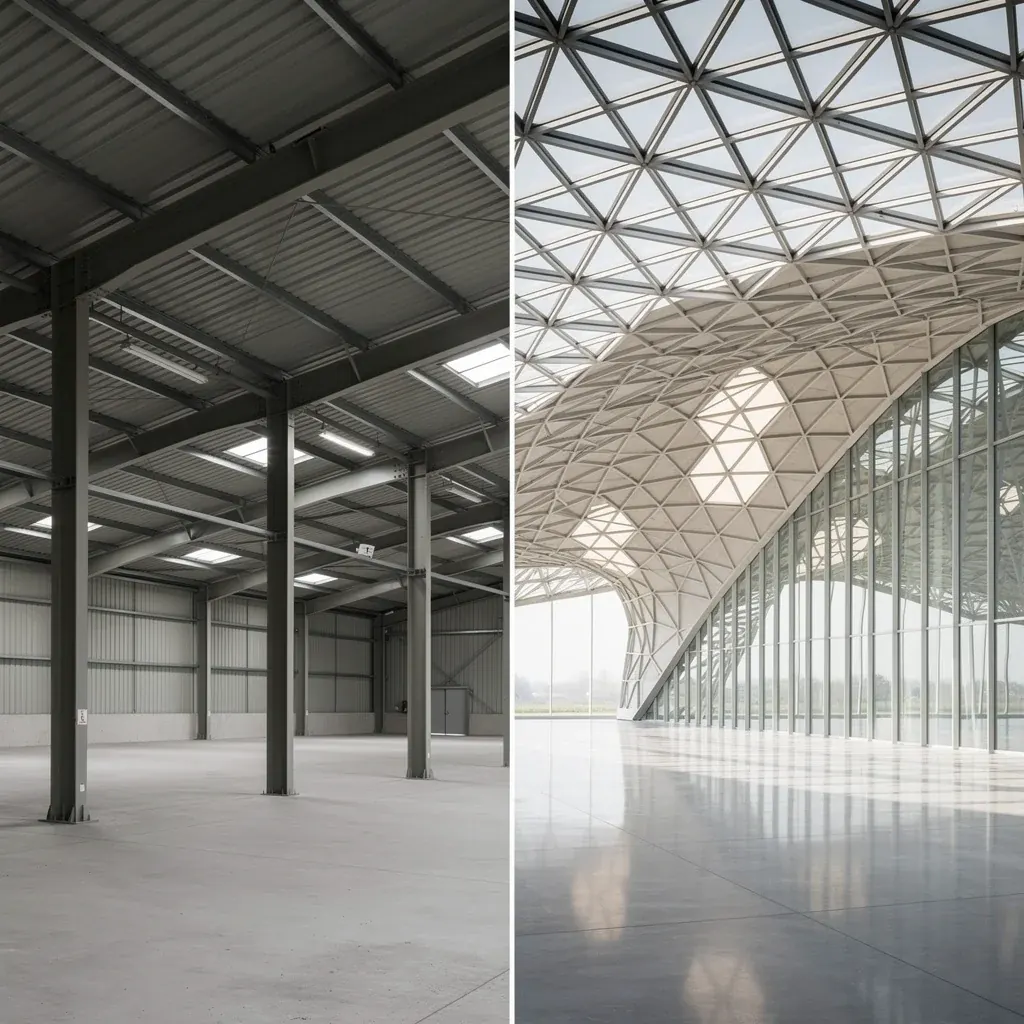

Portal Frame vs Space Frame: 2026 Comparison

Choosing between portal frame and space frame is one of the first decisions in steel structure design. This comparison helps you make the right choice.

Quick Comparison

What is Portal Frame?

Portal frame is the most common steel structure for warehouses and factories.

Key Features

• Frame type: Rigid frame with moment connections
• Span: 15-60m (optimal: 20-40m)
• Eave height: 6-12m typical
• Roof slope: 5-10%

Pros

✅ Low cost ✅ Fast construction ✅ Simple design and erection ✅ Easy to extend

Cons

❌ Limited span (needs columns for >60m) ❌ Rectangular layout only ❌ Less architectural flexibility

Best For

• Warehouses and logistics centers
• Factory buildings
• Agricultural buildings
• Small to medium commercial buildings

What is Space Frame?

Space frame is a 3D truss system for large, column-free spaces.

Key Features

• Structure: Interconnected struts in triangular pattern
• Span: 20-120m+ (no columns)
• Shape: Flat, curved, dome, pyramid
• Load distribution: Multi-directional

Pros

✅ Enormous column-free spans ✅ Architectural flexibility (curves, domes) ✅ Excellent seismic performance ✅ Lightweight relative to span

Cons

❌ Higher cost ❌ Complex fabrication and erection ❌ Longer design time ❌ Requires specialized crew

Best For

• Airport terminals and hangars
• Sports arenas and stadiums
• Exhibition halls
• Shopping mall atriums
• Large religious buildings

Head-to-Head Comparison

1. Cost

Winner: Portal Frame (50% cheaper)

2. Span Capability

Winner: Space Frame (for >60m spans)

3. Construction Time

Winner: Portal Frame (30% faster)

4. Maintenance

Winner: Portal Frame (easier maintenance)

5. Architectural Flexibility

Winner: Space Frame (architectural freedom)

Decision Tree: Which to Choose?

Choose Portal Frame if:

• ✅ Span < 60m
• ✅ Rectangular layout OK
• ✅ Budget is constraint
• ✅ Fast construction needed
• ✅ Standard appearance acceptable

Choose Space Frame if:

• ✅ Span > 60m (or column-free needed)
• ✅ Architectural statement desired
• ✅ Mixed-use (exhibition + sports)
• ✅ Long-term investment (iconic building)
• ✅ Seismic zone (space frame performs better)

Cost Optimization Tips

Portal Frame

1. Optimize column spacing (6-7.5m optimal)
2. Use standard roof slope (5-7%)
3. Avoid heavy cranes (>10T increases cost significantly)
4. Consider pre-engineered options

Space Frame

1. Standardize node types (reduce fabrication cost)
2. Use standard steel tubes (avoid custom sections)
3. Optimize for simple support conditions
4. Consider hybrid (space frame roof + portal frame walls)

Case Study: 5,000m² Logistics Center

Option A: Portal Frame

• Span: 40m (3 bays of 13.3m)
• Cost: $180/m² × 5,000m² = $900,000
• Construction time: 10 weeks
• Columns: 2 rows (acceptable for logistics)

Option B: Space Frame

• Span: 50m (column-free)
• Cost: $350/m² × 5,000m² = $1,750,000
• Construction time: 14 weeks
• Columns: 0 (maximum space utilization)

Decision: Portal Frame (client chose cost savings over column-free space)

FAQ: Portal Frame vs Space Frame

Q: Can I convert portal frame to space frame later? A: No, they are fundamentally different systems. Choose correctly from start.

Q: Is space frame stronger than portal frame? A: Not necessarily. Both can be designed for same loads. Space frame is more efficient for long spans.

Q: Can space frame be dismantled and relocated? A: Possible but expensive. Bolted connections help, but node damage likely during dismantling.

Q: Which has better resale value? A: Portal frame (more common, easier to repurpose). Space frame is often project-specific.

Conclusion

Choose Portal Frame for cost-effective, fast construction of warehouses and factories.

Choose Space Frame for large, column-free spaces with architectural ambitions.
