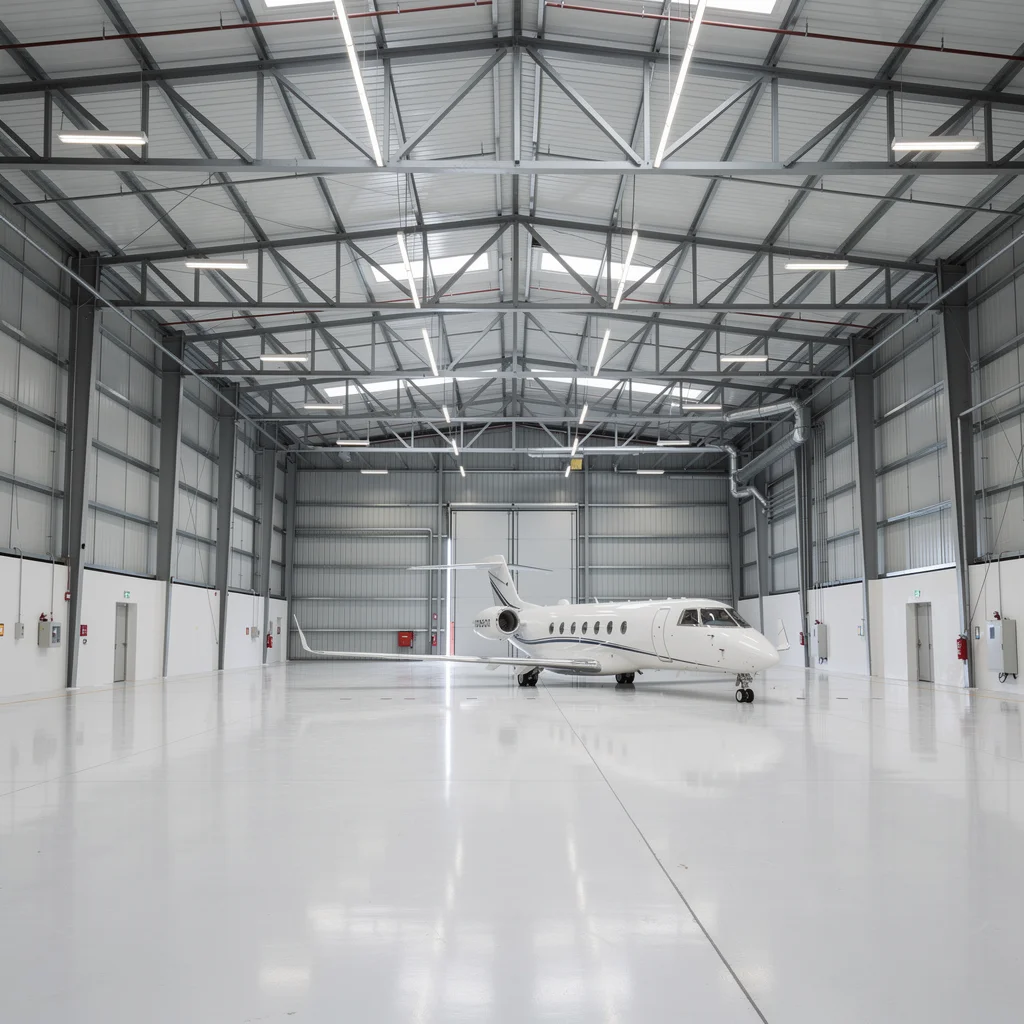

Aircraft Hangar Cost: Complete Steel Structure Pricing Guide 2026

Building an aircraft hangar is a major capital investment. Whether you need a private hangar for a Cessna, a corporate hangar for a Gulfstream, or a maintenance facility for a Boeing 737, the steel structure cost is the largest line item in your budget.

This guide breaks down aircraft hangar costs by size, configuration, and design requirements — with real FOB pricing from a Chinese steel manufacturer and total project cost estimates including shipping and installation.

Aircraft Hangar Cost Overview

| Hangar Type | Clear Span Width | Typical Cost (Steel Structure Only, FOB) | Total Project Cost (Installed) | |------------|:----------------:|:----------------------------------------:|:------------------------------:| | Private / Single-engine | 15–25m | $45,000–120,000 | $90,000–250,000 | | Mid-size / Corporate | 30–45m | $180,000–450,000 | $400,000–900,000 | | Large / Narrow-body airliner | 50–70m | $600,000–1,500,000 | $1,000,000–3,500,000 | | Super-hangar / Wide-body | 80–120m+ | $2,000,000–5,000,000+ | $4,000,000–12,000,000+ |

*FOB prices are ex-works Chinese factory. Shipping adds 10–18%, installation adds 15–25%, foundation adds 5–10%.*

What Affects Aircraft Hangar Cost

1. Clear Span Width — The #1 Cost Driver

An aircraft hangar must be a clear span structure — no interior columns — because aircraft cannot maneuver around pillars. As span increases, steel weight and cost rise exponentially:

| Clear Span Width | Steel Weight (kg/m²) | Relative Cost Factor | |:----------------:|:--------------------:|:--------------------:| | 20m | 30–35 | 1.0x (baseline) | | 30m | 35–42 | 1.3x | | 40m | 42–50 | 1.7x | | 55m | 50–65 | 2.3x | | 70m+ | 65–90 | 3.5x+ (requires truss/space frame) |

> Key takeaway: If you can design around a 40m span instead of 55m, you can save 30–40% on steel cost.

2. Door Type and Size

Hangar doors are a significant cost center — often 15–25% of the total structure budget:

| Door Type | Cost Range (per m²) | Best For | |-----------|:-------------------:|----------| | Bi-fold | $400–800/m² | Large openings (40m+ wide), excellent sealing | | Sliding (vertical lift) | $300–600/m² | Medium openings, good for tall tails | | Sectional overhead | $250–450/m² | Small to medium hangars, private aircraft | | Hydraulic folding | $500–1,000/m² | Very large hangars, quick operation |

Critical: Door cost depends not just on width but on height. A 40m wide × 8m tall bi-fold door costs significantly less than a 40m × 14m door (tail height for a 737).

3. Fire Protection

Hangars typically require fire suppression systems under local building codes (NFPA 409 in the US, equivalent in other jurisdictions):

| Fire Protection Level | Cost (per m²) | Requirement | |----------------------|:------------:|-------------| | Foam suppression system | $25–45/m² | ISO hangar (single aircraft) | | Foam + sprinkler | $35–60/m² | Group I/II hangar (multiple aircraft) | | Structural fireproofing (intumescent) | $15–30/m² | Steel columns within 10m of aircraft |

In some regions, you can reduce fire protection cost by designing an "open" hangar (no enclosed walls on three sides) — but this impacts security and climate control.

4. Annex / Support Space

Hangars are rarely just a big room. Most projects include:

| Annex Space | Size | Cost Factor | |-------------|:----:|:-----------:| | Offices / crew room | 50–200m² | +8–15% | | Parts storage | 30–100m² | +3–8% | | Workshop / maintenance bay | 50–150m² | +5–12% | | Wash bay | 50–100m² | +2–5% |

Combined, annex spaces typically add 15–35% to the base hangar structure cost.

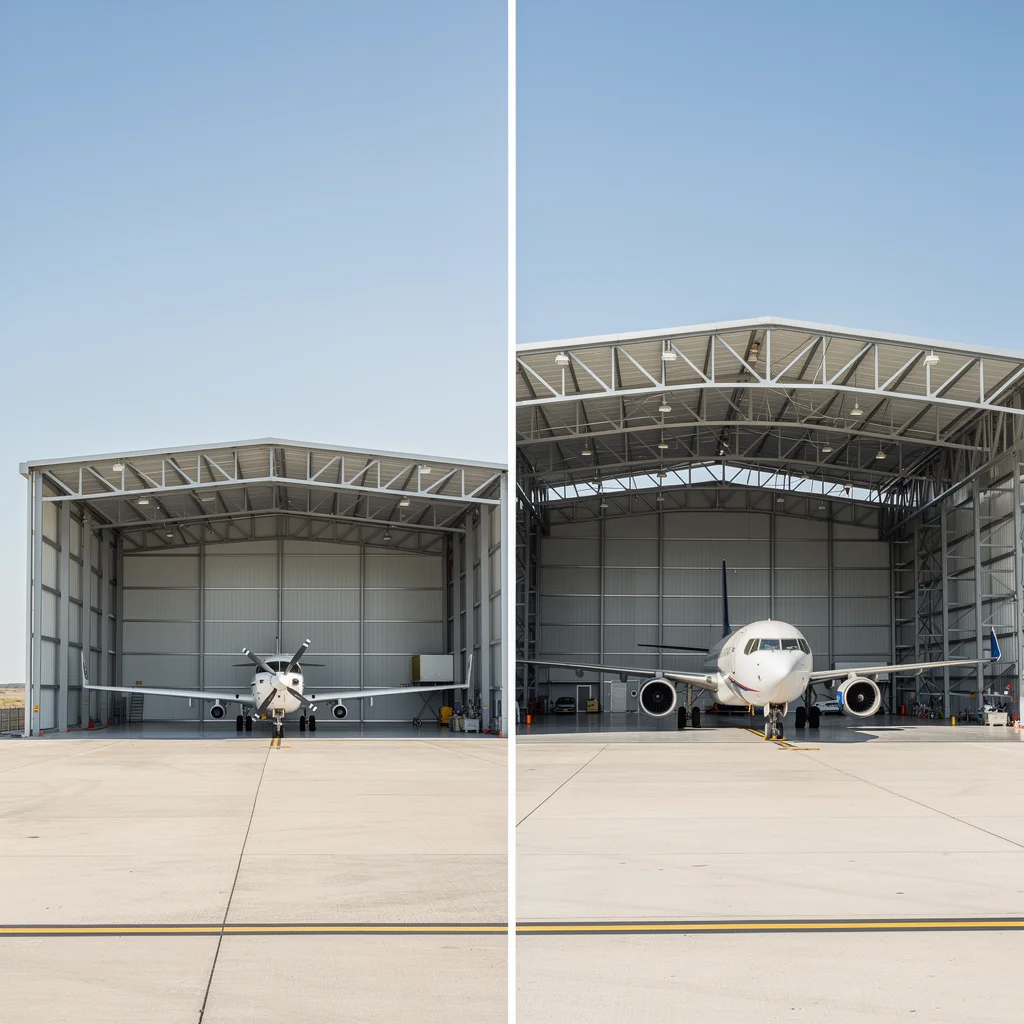

Cost Breakdown by Hangar Size

Small Hangar: 20m × 20m (400m²) — Single Engine

Aircraft fit: Cessna 172, Piper Seneca, Cirrus SR22, similar single-engine aircraft.

| Cost Item | Amount (USD) | |-----------|:------------:| | Steel structure (FOB China) | $12,000 | | Cladding (PIR sandwich panels) | $8,000 | | Hangar door (sectional, 20m × 4m) | $12,000 | | Shipping (20' container) | $3,500 | | Foundation | $6,000 | | Local installation | $14,000 | | Total | $55,500 | | Cost per m² | $139/m² |

Typical schedule: 45–60 days from order to completion.

Mid-Size Hangar: 40m × 40m (1,600m²) — Corporate Jet

Aircraft fit: Gulfstream G650, Bombardier Global 7500, Dassault Falcon 8X, plus support spaces.

| Cost Item | Amount (USD) | |-----------|:------------:| | Steel structure (FOB China) | $82,000 | | Cladding (PIR sandwich panels) | $32,000 | | Hangar door (bi-fold 40m × 10m) | $68,000 | | Annex (office + workshop 200m²) | $41,000 | | Fire suppression (foam system) | $40,000 | | Shipping (3×40HQ containers) | $12,000 | | Foundation | $32,000 | | Local installation | $72,000 | | Total | $379,000 | | Cost per m² | $237/m² |

Typical schedule: 90–120 days from order to completion.

Large Hangar: 65m × 70m (4,550m²) — Narrow-Body Airliner

Aircraft fit: Boeing 737-800 (wingspan 35.8m, length 39.5m) — single or two aircraft.

| Cost Item | Amount (USD) | |-----------|:------------:| | Steel structure (FOB China) | $320,000 | | Cladding (PIR + standing seam roof) | $114,000 | | Hangar door (sliding vertical, 65m × 12m) | $245,000 | | Annex (office + shop + parts 500m²) | $183,000 | | Fire suppression (deluge + foam) | $137,000 | | Floor slab (heavy-duty industrial) | $136,000 | | Shipping (9×40HQ containers) | $38,000 | | Foundation | $137,000 | | Local installation | $273,000 | | Total | $1,583,000 | | Cost per m² | $348/m² |

Typical schedule: 5–8 months from order to completion.

Regional Cost Differences

Where you build affects the total cost significantly:

North America (USA / Canada)

• Shipping from China: $3,500–4,500 per 40HQ container (West Coast) to $5,500–7,000 (East Coast)
• Installation labor: $25–50/m² (higher in union states)
• Foundation: $15–25/m²
• Import duty: 25% on steel structures (Section 232 tariff, subject to exclusions)

Europe

• Shipping: $2,500–4,000 per 40HQ
• Installation labor: €30–60/m²
• CE certification: Usually already held by Chinese exporters (EN 1090)
• Import duty: 0–4.7% (EU safeguard measures vary by country)

Middle East

• Shipping: $3,000–5,000 per 40HQ (Dubai as hub)
• Installation labor: $15–35/m²
• No import duty in most GCC countries (UAE, Saudi Arabia, Qatar)
• Foundation: Higher cost due to sand/desert conditions (+20–30%)

Africa

• Shipping: $4,000–7,000 per 40HQ (limited port infrastructure)
• Installation labor: $10–25/m²
• Import duty: 5–20% (varies by country)
• Additional: Often need local agent, longer customs clearance

Design Considerations

Column Configuration

Small hangars (under 30m span): Two perimeter columns at door side, two at rear — standard portal frame.

Medium-to-large hangars (30–50m span): Door-side columns at wider spacing with a door header truss — the truss transfers roof loads to columns at the sides of the door opening.

Very large hangars (50m+): A cantilever or truss system is required where the door opening spans the full width. This is the "open face" configuration seen at major airport hangars.

Door Opening vs. Building Width

| Configuration | Structural Complexity | Cost Impact | |--------------|:--------------------:|:-----------:| | Full-width opening (door spans entire front) | Very high | +20–35% | | Partial opening (door is part of front wall) | Moderate | +5–12% | | Multi-bay doors (several independent doors) | Low to moderate | +0–8% |

Roof Live Loads

| Location | Roof Snow/Live Load | Structural Impact | |----------|:-------------------:|-------------------| | Tropical (no snow) | 0.3–0.5 kN/m² | Lightest, lowest cost | | Temperate | 0.5–1.0 kN/m² | Standard | | Heavy snow zones | 1.5–4.0 kN/m² | Significantly heavier, +15–30% cost | | Seismic zones (all) | As per local code | +5–15% bracing |

Tail Height Clearance

Different aircraft require different door and interior heights:

| Aircraft | Tail Height | Recommended Building Eave Height | |----------|:----------:|:-------------------------------:| | Cessna 172 | 2.7m | 4–5m | | Pilatus PC-12 | 4.3m | 6–7m | | Gulfstream G650 | 5.6m | 8–9m | | Bombardier Global 7500 | 6.2m | 9–10m | | Boeing 737-800 | 12.6m | 14–16m | | Airbus A320 | 11.8m | 14–16m | | Boeing 787 | 16.9m | 19–22m |

Each additional meter of height adds approximately 5–8% to the steel structure cost.

How to Save on Your Aircraft Hangar

1. Right-Size Your Hangar

The biggest cost mistake is building too large. Study your current and near-term aircraft fleet, then add 20% growth margin — not 50%.

2. Consider a "Shell-Only" Building

Some buyers build the hangar shell now and leave the annex, interior fit-out, and fire suppression for later. This can reduce Phase 1 cost by 30–50%.

3. Choose the Right Door

A bi-fold door is iconic but can cost 2–3× more than a vertical-lift sliding door. For most applications below 50m width, sliding doors perform identically.

4. Use CE-Certified Chinese Steel

Chinese steel structure manufacturers (including Laotie Steel) offer CE-certified (EN 1090) hangars at 30–50% less than local fabrication in Europe, North America, or Australia — even after shipping and import duties.

5. Coordinate Foundation and Steel

Order the foundation design from your steel supplier before pouring concrete. Many buyers pour foundations that are either undersized (requiring expensive retrofitting) or oversized (wasting money).

Case Study: Corporate Hangar in Dubai

Project: 32m × 36m (1,152m²) corporate hangar for a Gulfstream G650 Location: Dubai South (Dubai World Central), UAE Completion: Late 2025

Configuration

• Clear span: 32m × 36m (column-free)
• Eave height: 9m
• Door: Bi-fold, 32m × 8m
• Annex: 150m² (office + lounge + washroom)
• Cladding: PIR sandwich panels with insulated roof
• Fire: Foam suppression system (NFPA 409 compliant)

Actual Costs

| Item | Budget (USD) | Actual (USD) | |------|:-----------:|:------------:| | Steel structure (FOB, China) | $58,000 | $54,200 | | Hangar door (bi-fold) | $38,000 | $35,500 | | Cladding + accessories | $22,000 | $21,800 | | Annex materials | $31,000 | $28,500 | | Shipping (2×40HQ) | $8,000 | $7,200 | | Foundation | $22,000 | $24,600 | | Local installation (contractor) | $52,000 | $56,000 | | Fire suppression | $31,000 | $33,500 | | Floor slab + finishing | $18,000 | $19,800 | | Total | $280,000 | $281,100 |

*Final cost was within 0.4% of budget — a well-planned hangar project is predictable.*

Client feedback: "The clear span design gives us full flexibility. We can park the G650 and have maintenance equipment on all sides without obstacles."

Shipping and Logistics

Container Requirements

| Hangar Size | Floor Area | Containers Needed | |------------|:----------:|:-----------------:| | Small (20m × 20m) | 400m² | 1×20' + 1×40HQ | | Mid (40m × 40m) | 1,600m² | 3–4×40HQ | | Large (65m × 70m) | 4,550m² | 8–12×40HQ |

Key Shipping Considerations

• Ocean freight: $2,500–7,000 per 40HQ depending on destination
• Lead time: 25–35 days from major Chinese ports (Shanghai, Ningbo, Shenzhen)
• Insurance: 0.3–0.5% of cargo value
• Customs clearance: 3–10 days depending on country
• Inspection: Optional third-party (SGS/BV) at factory before shipping

Why Buyers Choose Laotie Steel for Hangars

Laotie Steel Structure Co., Ltd. has delivered 50+ aircraft hangar projects across 15 countries. Our hangar-specific advantages:

• CE (EN 1090) + ISO 9001 certified — recognized by aviation authorities worldwide
• 5 production lines, 60,000 tons annual capacity — we handle hangars of any size
• Door integration experience — we design the interface between steel frame and hangar doors to ensure perfect alignment
• Full documentation — shop drawings, erection drawings, foundation loads, and as-built documents
• Factory-direct pricing — no middleman, you pay what the factory charges
• Free engineering review — we verify your design loads and optimize the steel weight

Frequently Asked Questions

Q: How much does a small private aircraft hangar cost? A: A steel hangar for a single-engine aircraft (20m × 20m, 400m²) costs approximately $55,000–120,000 total installed, depending on door type and location.

Q: Can I get a hangar without a foundation from China? A: Yes — most buyers purchase the steel structure and cladding from the Chinese factory, and arrange foundation and installation locally. We provide foundation designs with every quotation.

Q: How long does a steel hangar last? A: 50+ years with periodic maintenance. The hot-dip galvanized or painted coating system determines the maintenance interval — typically 15–20 years before repainting.

Q: Do I need fire suppression? A: In most jurisdictions, yes. Hangars fall under specific fire codes (NFPA 409, local equivalents). A foam suppression system costs $25–45/m².

Q: Can the hangar be expanded later? A: Yes — the end wall can be removed and additional bays added. Design the foundation for future expansion during the initial build to save later costs.

Q: How long from order to delivery? A: 30–60 days for small hangars, 60–90 days for large hangars. Shipping adds 25–45 days depending on destination.

Q: Do you offer erection services? A: We provide detailed erection drawings and can recommend experienced contractors in your region. Local installation is arranged by the buyer.

Get Your Aircraft Hangar Quote

Ready to build? Laotie Steel Structure provides complete design, fabrication, and shipping for aircraft hangars worldwide.

📱 WhatsApp: +86 166-5073-5555 🌐 Website: https://www.laotie-steel.com 📧 Contact: Use the website contact form or reach us on WhatsApp

Tell us your aircraft type, desired dimensions, and location — we'll send a detailed quotation within 24 hours.
