Steel Structure Production in China: Complete Manufacturing Guide 2026

China has become the world's leading hub for steel structure production, accounting for over 55% of global steel production capacity. For international buyers seeking quality steel buildings at competitive prices, understanding how Chinese manufacturers operate is essential.

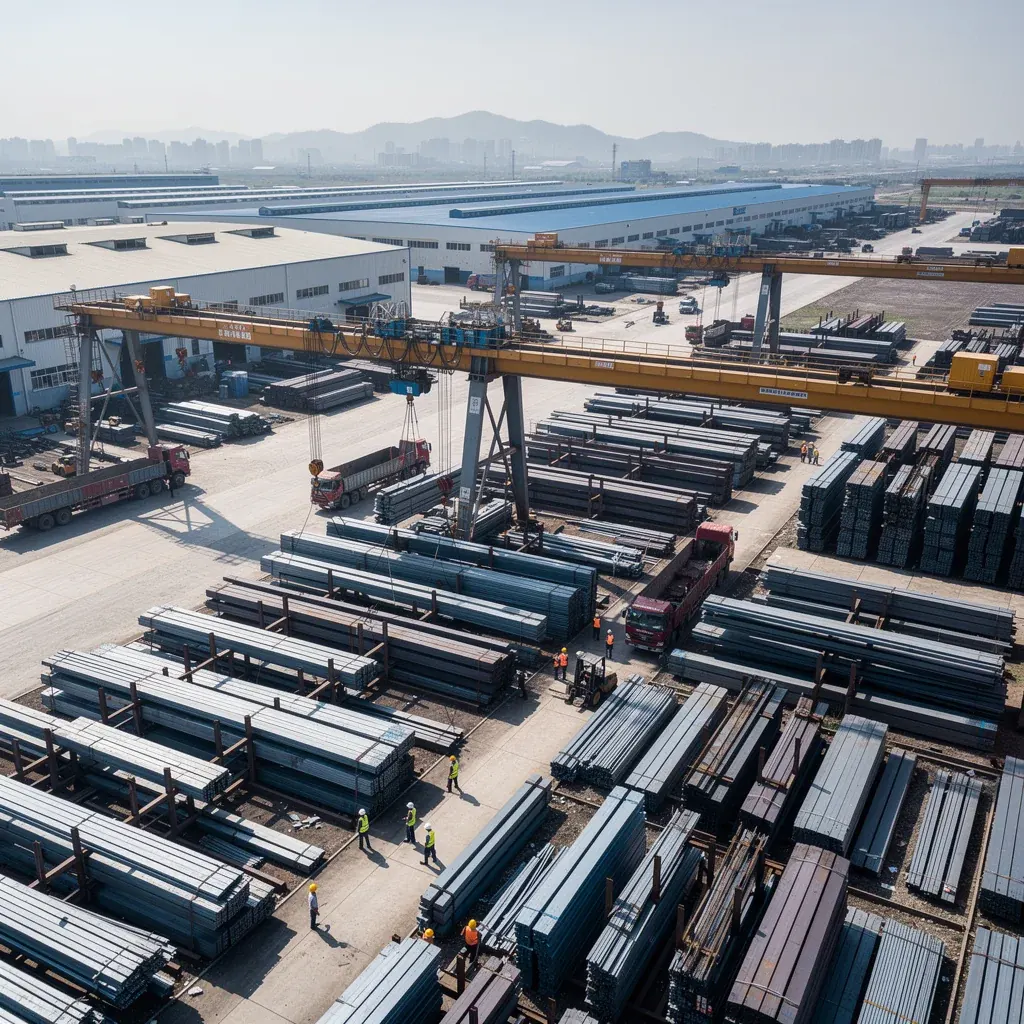

In this guide, we take you inside a modern Chinese steel structure factory — from raw steel to finished building components ready for global shipping.

Why China Leads Steel Structure Production

Several factors make China the top choice for steel structure manufacturing:

Integrated supply chain: From steel mills to surface treatment, everything is within 100km
Advanced automation: CNC cutting, robotic welding, and automated coating lines
Skilled workforce: Decades of expertise in steel fabrication
Competitive pricing: 30-50% lower than US or European equivalents
Massive capacity: Top factories produce 5,000+ tons per month

Laotie Steel Structure, based in Shangqiu, Henan Province, operates a 15,000 m² factory with an annual production capacity of 60,000 tons.

The Steel Structure Production Process: Step by Step

Step 1: Material Procurement & Inspection

Production begins with high-grade steel plates and sections sourced from certified mills (Baosteel, Ansteel, Shagang). Every batch comes with a mill test report (MTR) verifying:

Chemical composition (C, Si, Mn, P, S content)
Yield strength (Q235: ≥235 MPa, Q355: ≥355 MPa)
Tensile strength
Impact resistance

> Quality check: Ultrasonic testing (UT) verifies internal defects before any cutting begins.

Step 2: CNC Cutting & Profile

Steel plates are cut to precise dimensions using CNC plasma/laser cutting machines. Tolerances are kept within ±1mm. For H-beams and I-beams, web and flange plates are cut separately.

Typical equipment:

CNC plasma cutting machine (cutting accuracy ±0.5mm)
Laser cutting machine (for complex profiles)
Band saw (for section steel cutting)

Step 3: Assembly & Welding

Cut plates are assembled into H-sections or box sections using automatic submerged arc welding (SAW). This process ensures:

Deep penetration welds
Minimal spatter and distortion
Consistent weld quality

Welding standards: AWS D1.1 / GB 50661 / EN 1090-2

Each welder is certified, and 10% of all welds undergo non-destructive testing (NDT):

Ultrasonic Testing (UT)
Magnetic Particle Testing (MT)
X-ray testing (for critical connections)

Step 4: Straightening & Dimensional Correction

After welding, H-beams may have slight deformation. A hydraulic straightening machine corrects any twist or camber to within 1/1000 of the beam length.

Step 5: Surface Treatment (Blasting & Painting)

Steel must be protected against corrosion. The process:

Shot blasting: Abrasive blasting to SA 2.5 standard (near-white metal)
Primer coating: Epoxy zinc-rich primer (60-80 μm thickness)
Intermediate coat: Epoxy micaceous iron oxide (80-100 μm)
Top coat: Polyurethane or fluorocarbon (40-60 μm)

> For coastal or high-humidity projects, hot-dip galvanizing (HDG) is available with 80-120 μm zinc coating.

Step 6: Pre-assembly & Drilling

Before shipping, connection holes are drilled using CNC drilling machines. For complex structures, a pre-assembly test is conducted in the factory to verify all connections fit perfectly. This reduces on-site installation time by up to 30%.

Step 7: Packing & Shipping

Components are labeled with unique numbers matching the erection drawing. Packing methods:

Small components: Steel pallets + plastic wrapping
Large beams: Bundled with steel strips
Export packaging: 20GP/40HQ containers (or flat-rack for oversized members)

Quality Control: 6-Stage Inspection System

At Laotie, every order goes through 6 inspection checkpoints:

Stage	Inspection Content	Standard
Incoming material	Steel grade verification	MTR review
Cutting	Dimensional accuracy	±1mm tolerance
Welding	Weld appearance & NDT	AWS D1.1 / EN 1090
Surface treatment	Coating thickness	150-300 μm total
Pre-assembly	Fit-up verification	100% connection test
Final inspection	Dimensional & visual	Customer checklist

Production Lead Time

Order Size	Production Time	Shipping Ready
< 500 m²	15-20 days	25-30 days
500-2000 m²	20-30 days	30-40 days
2000-5000 m²	30-45 days	40-55 days
> 5000 m²	45-60 days	55-70 days

Why Choose Laotie for Steel Structure Production

✅ 15,000 m² factory in Shangqiu, Henan
✅ 5,000+ tons/month production capacity
✅ CE & ISO 9001 certified
✅ EN 1090-2 EXC2 execution class
✅ 20+ countries exported to
✅ 24/7 WhatsApp support: +86 166-5073-5555

Frequently Asked Questions

Q: Can I visit the factory before ordering? A: Absolutely! We welcome client visits. Shangqiu is 1.5 hours by high-speed rail from Zhengzhou, and we can arrange airport pickup.

Q: What steel grades do you use? A: Q235B and Q355B as standard. Higher grades (Q420, ASTM A992) available on request.

Q: Do you provide the erection drawings? A: Yes. Our engineering team provides complete erection drawings, bolt lists, and installation manuals with every order.

Get a Free Production Quote

Ready to start your steel structure project? Contact Laotie for a free quote within 24 hours.

📱 WhatsApp: +86 166-5073-5555 🌐 Website: https://www.laotie-steel.com 📧 Email: Contact us via the website contact form

*Laotie Steel Structure — Trusted by 200+ clients across 20+ countries. Factory-direct pricing, international quality standards.*
